3V 4.5V 6V 12V D Shaft Small Gear Motor Customized GA12-N20 DC Gear Motor Low Rpm
This lightweight, high-torque GA12-N20 Metal Gear Micro DC Motor with Precious Metal Brush

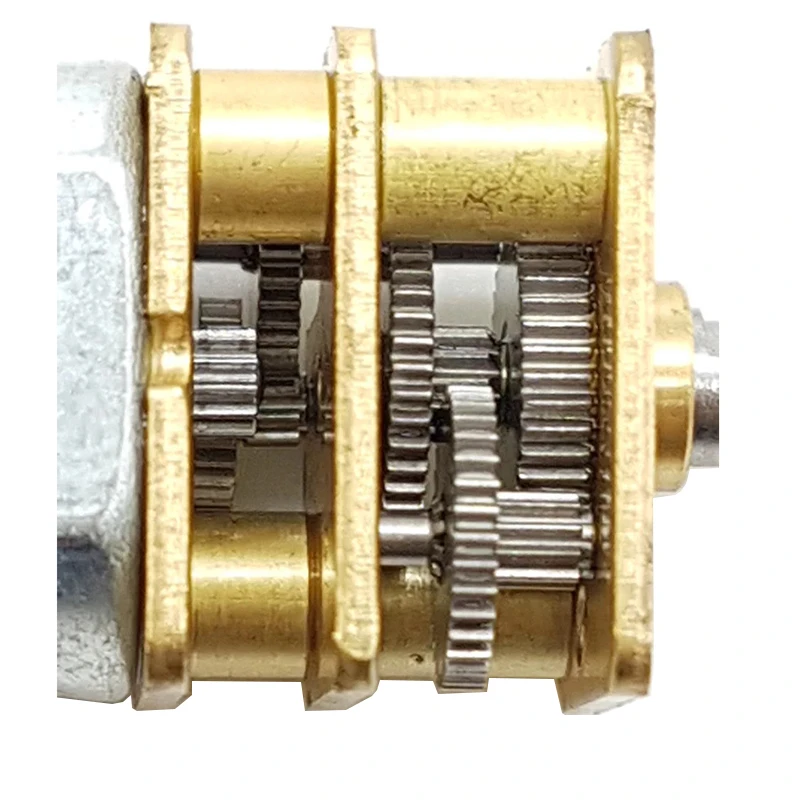

is appropriate for a range of home, commercial, and recreational applications. The all-metal gearbox assembly that comes with this motor gives it a lot of torque for its size.Additionally, it guarantees a longer motor operating life than a motor with plastic gearboxes.
The N20 motor outperforms all other motors by a significant margin when comparing torque, durability, dependability, and working life. This is demonstrated by the parameters listed below. tiny IIOT (Industrial IOT) devices that require high torque in a tiny package and light weight, such as webcam pan tilt, electric locks, and other similar actuators, are best suited for the N20 motor.
The N20 all metal gear motor is ideal for hobby items such robotic cars, micromouses, electric boats, and any small motor-related projects where power consumption and cost are factors. An encoder is another option for the N20 all-metal gear micro dc motor, which can aid in precisely controlling the motor's position. For the same, kindly examine the N20 Motor With Encoder section.
Specifications:
- Model No: GA12 N20
- Motor Type: Center Shaft DC Geared Motor
- No-load Speed : 30 RPM
- Gear Ratio: 298
- Rated Voltage: 4.5V DC
- No Load Current: ≤30 mA
- Rated Current: 0.08 mA
- Stall Current: 0.67 A
- Rated Torque: 1.5 Kgcm
- Stall Torque: 10 Kgcm
- Shaft Type: D-type Single Side/ Round -type Single Side
- Shaft Diameter (mm): 3-2.5mm
- Shaft Length (mm): 10mm or Custom
- Weight (g): 12
Customized Mini N20 Motor Gearbox DC Electric Lock Parameter List & Drawing
Low Power GA12-N20 Motor Parameter/Specifications
| Model
| Volt | No-load | At Maximum Efficiency | Stall |
| V
| Speed | Current | Speed | Current | Torque | Power | Torque | Current |
| r/min | A | r/min | A | kg.cm | W | Kg.cm | A |
| GA12YN20-5 | 6 | 2600 | 0.03 | 1950 | 0.1 | 0.012 | 0.24 | 0.05 | 0.35 |
| GA12YN20-10 | 6 | 1300 | 0.03 | 970 | 0.1 | 0.024 | 0.24 | 0.1 | 0.35 |
| GA12YN20-20 | 6 | 650 | 0.03 | 485 | 0.1 | 0.044 | 0.22 | 0.17 | 0.35 |
| GA12YN20-30 | 6 | 433 | 0.03 | 325 | 0.1 | 0.065 | 0.21 | 0.26 | 0.35 |
| GA12YN20-50 | 6 | 260 | 0.03 | 195 | 0.1 | 0.1 | 0.2 | 0.39 | 0.35 |
| GA12YN20-75 | 6 | 173 | 0.03 | 130 | 0.1 | 0.14 | 0.19 | 0.58 | 0.35 |
| GA12YN20-100 | 6 | 130 | 0.03 | 97 | 0.1 | 0.2 | 0.2 | 0.79 | 0.35 |
| GA12YN20-150 | 6 | 86 | 0.03 | 65 | 0.1 | 0.26 | 0.17 | 1.1 | 0.35 |
| GA12YN20-210 | 6 | 62 | 0.03 | 46 | 0.1 | 0.37 | 0.17 | 1.48 | 0.35 |
| GA12YN20-250 | 6 | 52 | 0.03 | 39 | 0.1 | 0.44 | 0.18 | 1.77 | 0.35 |
| GA12YN20-298 | 6 | 43 | 0.03 | 31 | 0.1 | 0.52 | 0.17 | 2.1 | 0.35 |
| GA12YN20-380 | 6 | 34 | 0.03 | 25 | 0.1 | 0.6 | 0.15 | 2.4 | 0.35 |
Mid Power GA12-N20 Motor Parameter/Specifications:
| Model
| Volt | No-load | At Maximum Efficiency | Stall |
| V
| Speed | Current | Speed | Current | Torque | Power | Torque | Current |
| r/min | A | r/min | A | kg.cm | W | Kg.cm | A |
| GA12YN20-5 | 6 | 4400 | 0.05 | 3300 | 0.23 | 0.017 | 0.58 | 0.07 | 0.6 |
| GA12YN20-10 | 6 | 2200 | 0.05 | 1650 | 0.23 | 0.035 | 0.59 | 0.14 | 0.6 |
| GA12YN20-20 | 6 | 1100 | 0.05 | 825 | 0.23 | 0.065 | 0.55 | 0.26 | 0.6 |
| GA12YN20-30 | 6 | 733 | 0.05 | 550 | 0.23 | 0.095 | 0.54 | 0.39 | 0.6 |
| GA12YN20-50 | 6 | 440 | 0.05 | 330 | 0.23 | 0.14 | 0.47 | 0.58 | 0.6 |
| GA12YN20-75 | 6 | 293 | 0.05 | 220 | 0.23 | 0.21 | 0.47 | 0.87 | 0.6 |
| GA12YN20-100 | 6 | 220 | 0.05 | 165 | 0.23 | 0.27 | 0.47 | 1.1 | 0.6 |
| GA12YN20-150 | 6 | 146 | 0.05 | 110 | 0.23 | 0.42 | 0.47 | 1.7 | 0.6 |
| GA12YN20-210 | 6 | 104 | 0.05 | 78 | 0.23 | 0.5 | 0.4 | 2 | 0.6 |
| GA12YN20-250 | 6 | 88 | 0.05 | 66 | 0.23 | 0.6 | 0.4 | 2.4 | 0.6 |
| GA12YN20-298 | 6 | 73 | 0.05 | 55 | 0.23 | 0.65 | 0.37 | 2.6 | 0.6 |
| GA12YN20-380 | 6 | 57 | 0.05 | 42 | 0.23 | 0.75 | 0.32 | 3 | 0.6 |
High Power GA12-N20 Motor Parameter/Specifications:
| Model
| Volt | No-load | At Maximum Efficiency | Stall |
| V
| Speed | Current | Speed | Current | Torque | Power | Torque | Current |
| r/min | A | r/min | A | kg.cm | W | Kg.cm | A |
| GA12YN20-5 | 6 | 6000 | 0.1 | 4500 | 0.4 | 0.022 | 1.01 | 0.09 | 1.7 |
| GA12YN20-10 | 6 | 3000 | 0.1 | 2250 | 0.4 | 0.045 | 1.01 | 0.18 | 1.7 |
| GA12YN20-20 | 6 | 1500 | 0.1 | 1120 | 0.4 | 0.08 | 0.92 | 0.32 | 1.7 |
| GA12YN20-30 | 6 | 1000 | 0.1 | 750 | 0.4 | 0.12 | 0.92 | 0.48 | 1.7 |
| GA12YN20-50 | 6 | 600 | 0.1 | 450 | 0.4 | 0.18 | 0.83 | 0.72 | 1.7 |
| GA12YN20-75 | 6 | 400 | 0.1 | 300 | 0.4 | 0.25 | 0.77 | 1 | 1.7 |
| GA12YN20-100 | 6 | 300 | 0.1 | 225 | 0.4 | 0.36 | 0.83 | 1.45 | 1.7 |
| GA12YN20-150 | 6 | 200 | 0.1 | 150 | 0.4 | 0.48 | 0.74 | 1.95 | 1.7 |
| GA12YN20-210 | 6 | 142 | 0.1 | 105 | 0.4 | 0.67 | 0.72 | 2.7 | 1.7 |
| GA12YN20-250 | 6 | 120 | 0.1 | 90 | 0.4 | 0.75 | 0.69 | 3 | 1.7 |
| GA12YN20-298 | 6 | 100 | 0.1 | 75 | 0.4 | 0.8 | 0.62 | 3.2 | 1.7 |
| GA12YN20-380 | 6 | 78 | 0.1 | 58 | 0.4 | 1 | 0.59 | 4.1 | 1.7 |
|
|

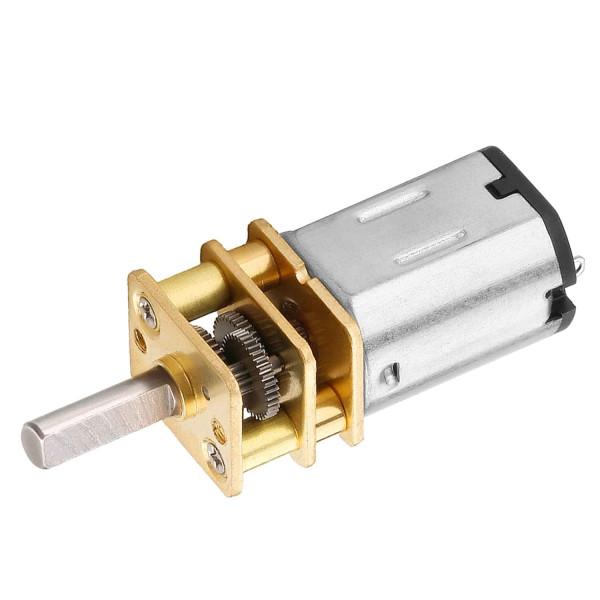

3V 4.5V 6V 12V D Shaft Small Gear Motor Customized GA12-N20 DC Gear Motor Low Rpm Images
|
