20mm Custom FC-130 Motor Small Brushed dc Motor For DIY Science Experiments Projects

Brand Name : Lihua Motor/HCS Motors

Model Number : FC-130 Size Motor

Certification : Reach/RoHs/IATF16949/ISO9001

Place of Origin : Dongguan,China

MOQ : 1000PCS

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 10000PCS/Day

Delivery Time : 35-45Day

Packaging Details : Carton

Name : 130 Small Hobby Electric Motors

Direction of Rotation : CW/CCW

Rated Volt : 3V-12V DC

No-load Speed : 9000 -25000RPM (3V-12V)

Motor Shaft Diameter : 2mm

Motor Size : 15mm * 20mm *25mm (0.59inch *0.79inch*098inch)

Motor Axis Length : 3mm-30mm custom

Gross Weight : 39g

Contact Now

20mm Custom 130 Small Brushed dc Motor For DIY Science Experiments Projects


This is micro 130 motor with black rear cover, which is a Strong Magnetic motor with high torque and high speed.Can use 3V 4.5V 6V 9V 12V power to drive.

20mm 130 min brushed dc motors with its small size and light weight  are usually used in DIY science education ,it can be used to combine with plastic fan belt pulley or gear parts.With strong power,it can be used for remote car engine to drive.Now let's go through the following 130 parameter and dimension !


⇔Overveiw


Since all our micro DC motors are custom-made, it is not feasible to list every model and specification. To help you better understand our capabilities, we have selected and displayed some commonly used or high-demand models on this website for reference.

If you have specific project requirements, please feel free to contact our customer service directly and provide your motor parameters or drawings. You may send your request via online chat or email, and our engineering team will respond within 12 hours with a professional solution.


130 motor (3V 22000 rpm) red back cover: High speed, suitable for making wind turbines and small fans, with all copper internal rotor windings.

  • Size: length 25mm, height 15mm, width 20mm
  • Shaft: 2mm diameter, 7.5mm length
  • Speed: approximately 22000 rpm at 3V voltage
  • Voltage: rated 3V power supply, no-load current about 350mA, locked-rotor current about 1.3A
  • Weight: approximately 15g

130 motor (6V 20000 rpm) black back cover: High speed ,long shaft ,suitable for DIY projects

  • Operating Voltage DC 3-9V
  • Rated Voltage:6V
  • No-load Current ≤ 350mA
  • Speed :2000RPM
  • Shaft Diameter 2mm
  • Shaft Length 6mm / 0.393″

NOTES: We accpted motor size customization ,all size can be designed as your need.



Custom 130 Small Brushed DC Motor Dimension



  • Model: FC-130  mini Motor

  • Shaft Type: Double Shaft

  • Shaft Diameter: 2mm

  • Shaft Length: Free-Customization (L)

  • Motor Body Diameter: 20mm

  • Motor Body Length: 25mm

  • Motor Body Height:15mm
  • Voltage Range: DC 3V-12V

  • Front Steps Diameter: 6.15mm

Front Step Height: 1.7 mm


20mm Custom FC-130 Motor Small Brushed dc Motor For DIY Science Experiments Projects




Customization Solutions for 130 Micro DC Motors

Lihua Motor offers a variety of customization options for 130 micro DC motors, widely used in DIY science projects, small plastic fan assemblies, electric models, and light-load drive systems.

We support multiple customization methods, including but not limited to:

  • End Cap Color Customization: The color of the motor end cap can be modified according to customer requirements to enhance product recognition and brand identity.

  • Lead Wire Soldering: Custom wires of various lengths and specifications can be soldered to the motor terminals for easier integration and assembly.

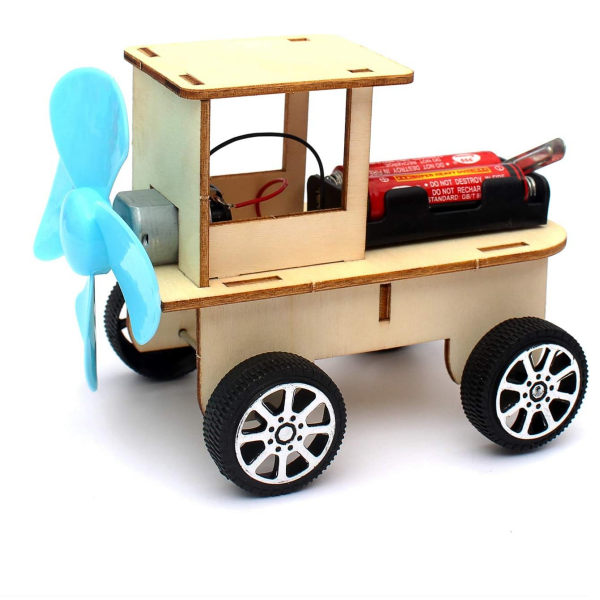

  • Fan Blade Assembly: The motor can be combined with plastic fan blades, making it ideal for mini fans or cooling devices.

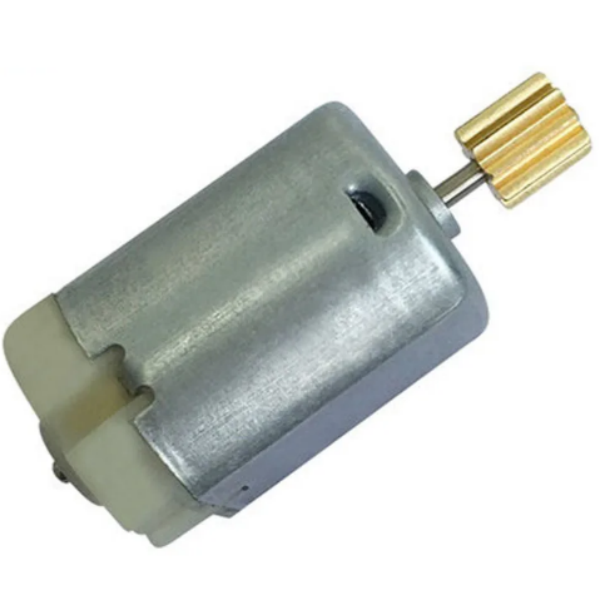

  • Metal Gear Output Shaft: The 130 motor can be equipped with a metal gear output shaft for precise transmission in small mechanical systems.

With extensive experience and efficient sample development capabilities, we can quickly turn your design into a tailored motor solution. Feel free to contact us for more customization cases and technical support.

20mm Custom FC-130 Motor Small Brushed dc Motor For DIY Science Experiments Projects 20mm Custom FC-130 Motor Small Brushed dc Motor For DIY Science Experiments Projects
130 End Cap Color Customization 130 Lead Wire Soldering
20mm Custom FC-130 Motor Small Brushed dc Motor For DIY Science Experiments Projects 20mm Custom FC-130 Motor Small Brushed dc Motor For DIY Science Experiments Projects
130  Fan Blade Assembly 130  Metal Gear Output Shaft
